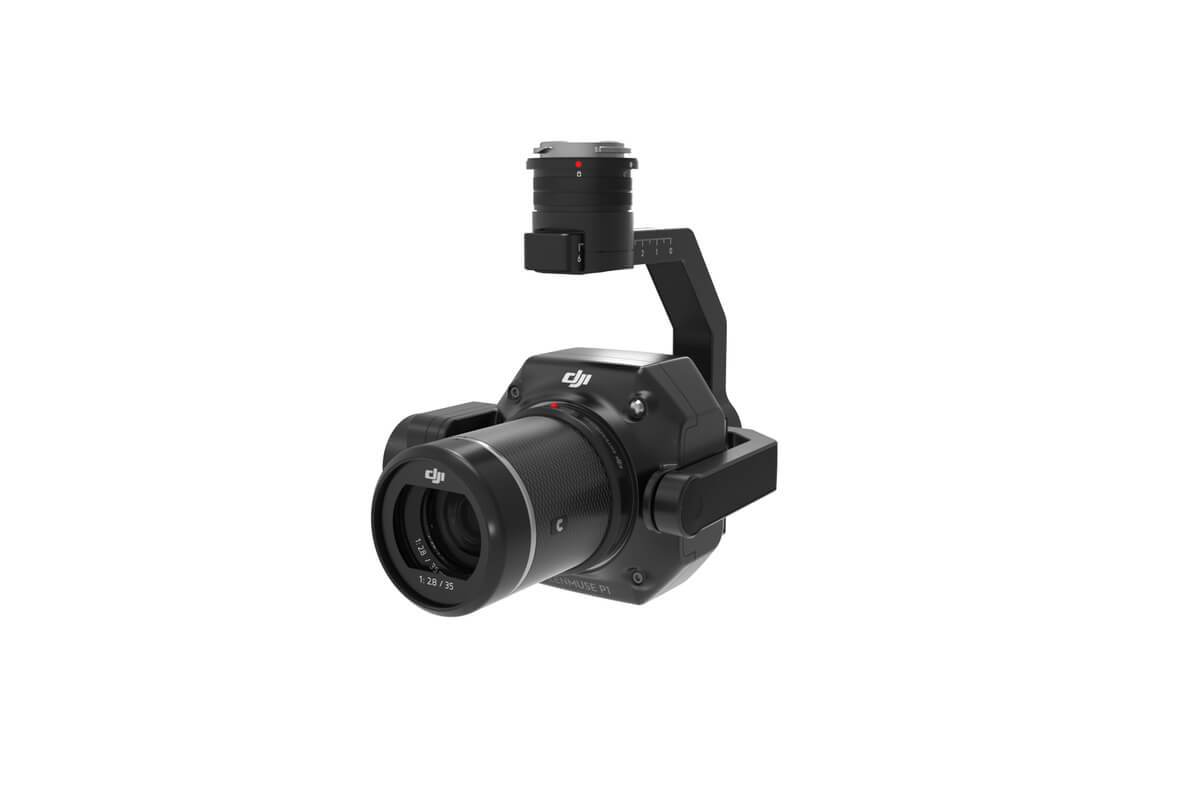

Zenmuse P1

The Zenmuse P1 integrates a 45 MP full-frame sensor with interchangeable fixed-focus lenses on a 3-axis stabilized gimbal. Designed for photogrammetry flight missions, it takes efficiency and accuracy to a whole new level with features like Smart Oblique Capture and Real-time Mapping. Compatible with Matrice 300 RTK and DJI Terra.

Accuracy without GCPs: 3 cm horizontally / 5 cm vertically

3 km² covered in a single flight

45 MP Full-frame Sensor

3-axis Stabilized Gimbal, supports Smart Oblique Capture

Global Mechanical Shutter, Shutter Speed 1/2000 Seconds

TimeSync 2.0 - synchronization at the microsecond level

Gimbal and Camera × 1

SD Card (128GB) × 1

Storage Case × 1

Camera Body Cap × 1

Lens Rear Cap × 1

Lens Cleaning Cloth × 1

Dimensions: 198×166×129 mm

Weight: Approx. 800 g

IP Rating: IP4X

Supported Aircraft: Matrice 300 RTK

Power: 20 W

Operating Temperature Range: -20° to 50° C (-4° to 122° F)

Storage Temperature Range: -20° to 60° C (-4° to 140° F)

Absolute Accuracy: Horizontal: 3 cm, Vertical: 5 cm

Shutter Speed: Mechanical Shutter Speed: 1/2000 -1 s, Electronic Shutter Speed: 1/8000-1 s

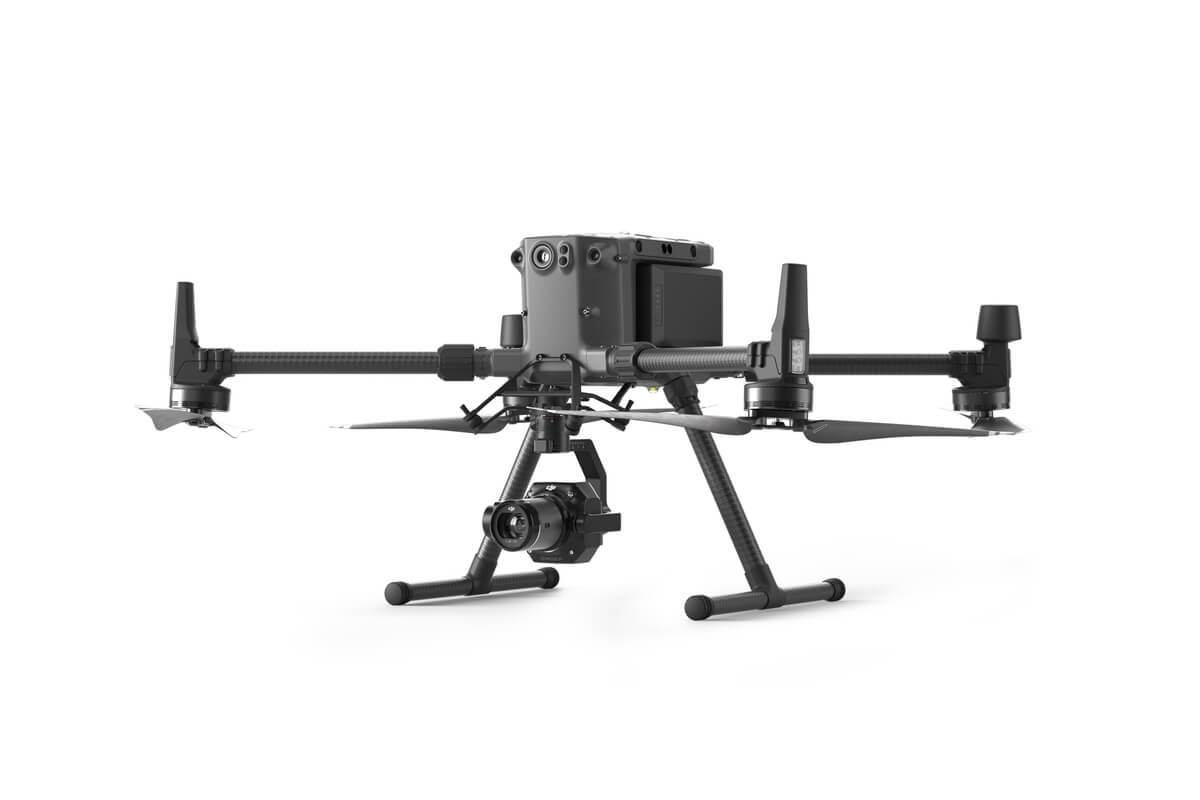

Matrice 300 RTK
